3.2.41. DWG to DXF (ODA)

Converts DWG file into DXF using ODA File Converter

Inputs:

  • Source DWG. Source file in AutoCAD DWG format

Outputs:

  • DXF file

Launch the tool: https://toolbox.nextgis.com/t/import_dwg_oda

Example:

../../_images/import_dwg_oda_input_en.png

Pic. 3.41. Example input

../../_images/import_dwg_oda_result_en.png

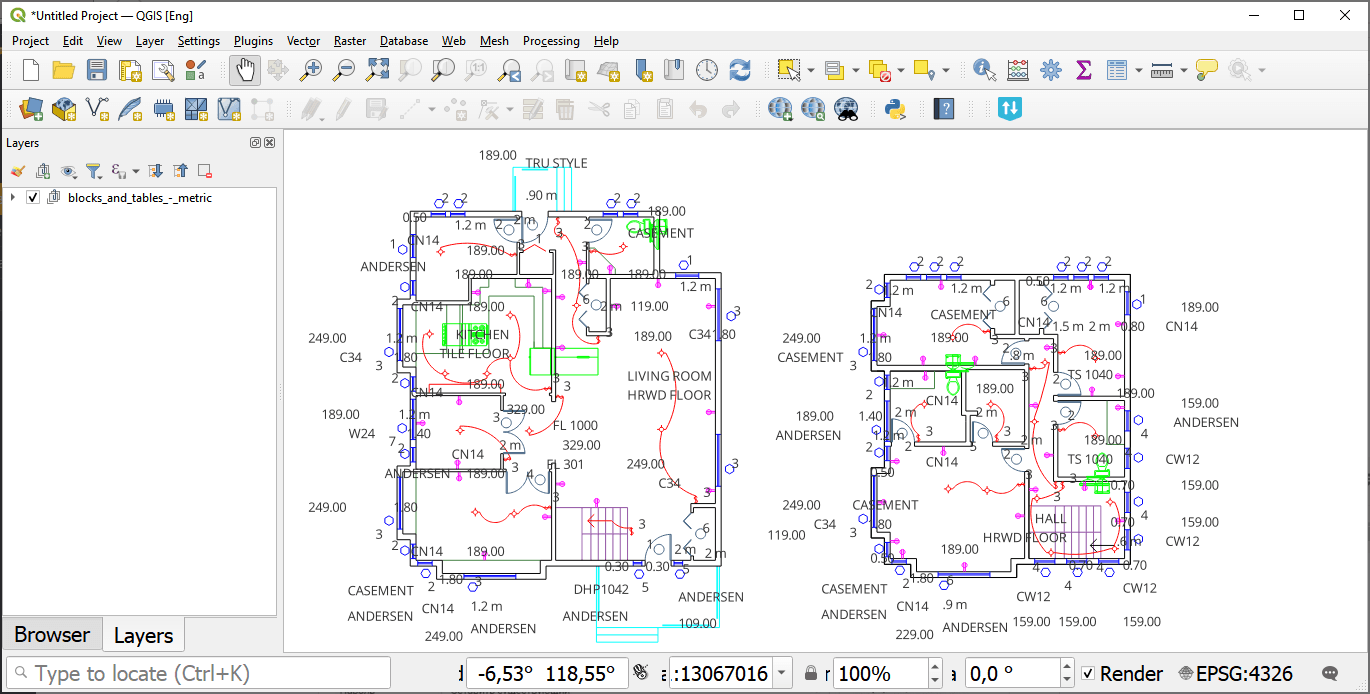

Pic. 3.42. Converted file opened in QGIS

Try the tool in action

  1. Click on the Demo button above the tool form. The fields are filled in with demo values.

  2. Click on the Run button.
