2.2.24. Fix geometries

Fixes incorrect geometries in vector files. To find out if a vector file has invalid geometries, use Check geometries.

Inputs:

  • ZIP archive with vector files. Only single-file formats are supported (Geopackage, GeoJSON, etc., but not ESRI Shapefile).

Outputs:

  • File with fixed geometries in the same format as input.

Launch the tool: https://toolbox.nextgis.com/t/fix_geometries

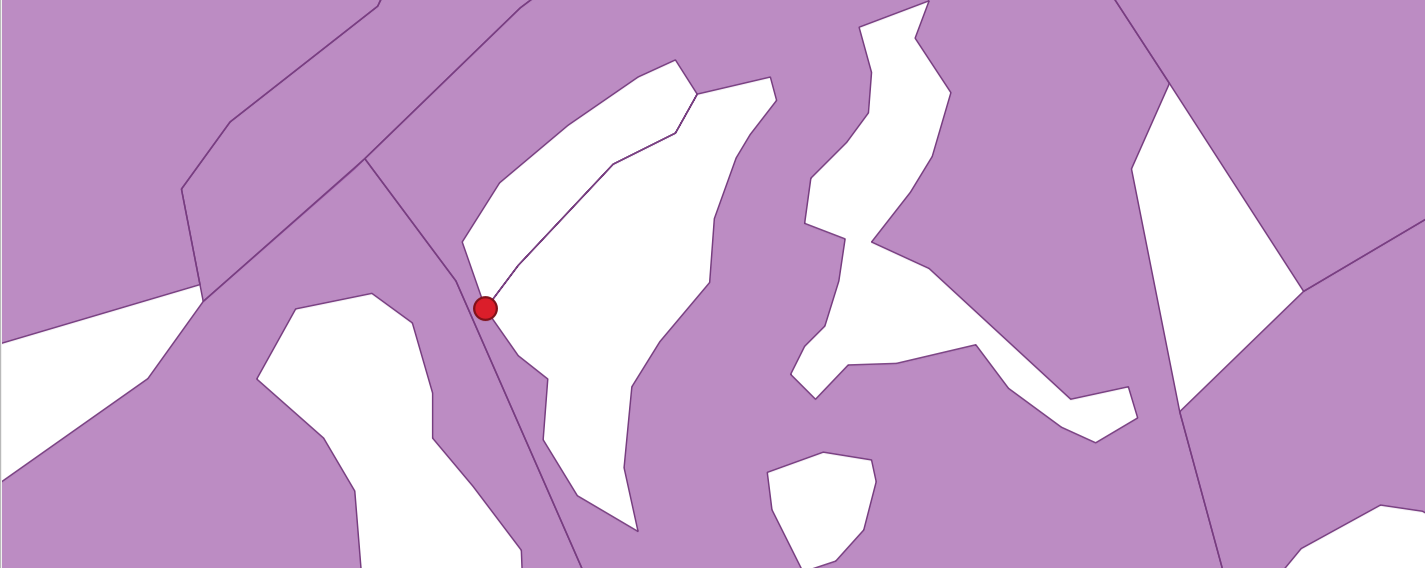

../../_images/fix_geometries_input.png

Pic. 2.13. Self-intersection detected

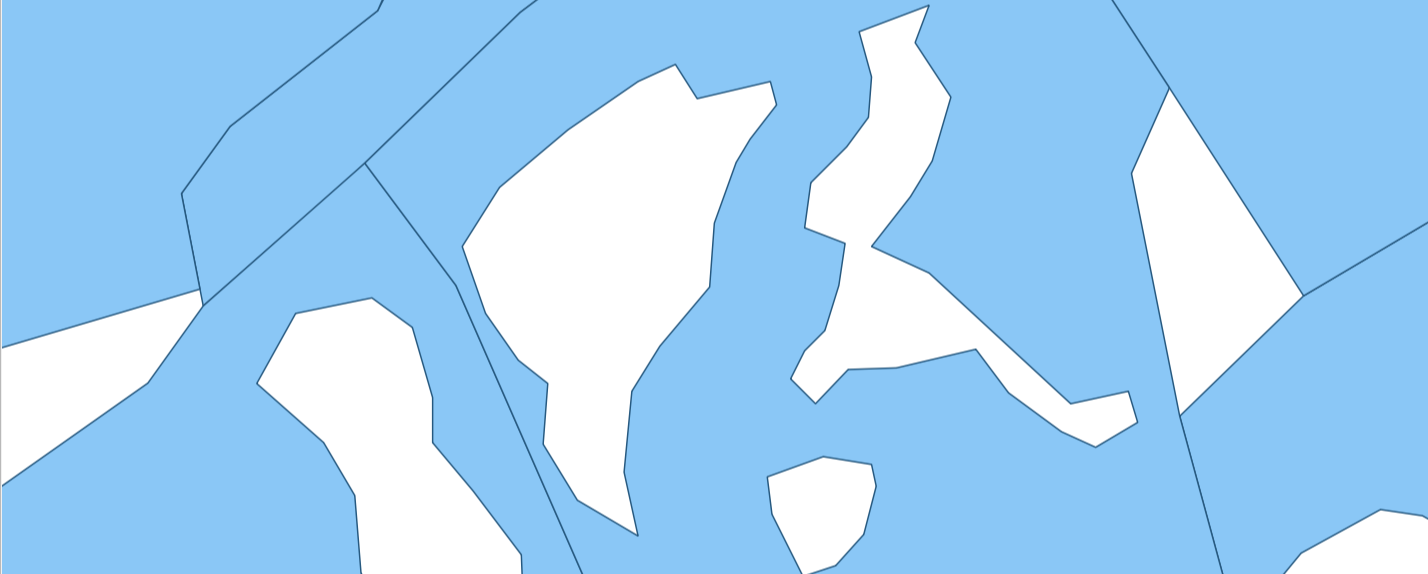

../../_images/fix_geometries_result.png

Pic. 2.14. Geometry fixed by the tool

Try the tool in action by downloading our example:

Input data set to test the tool. The archive contains step-by-step instructions.

Result example of the tool run.
