2.2.54. Add Google Photosphere XMP metadata to photos

Sometimes spherical panoramic images don’t have the neccessary tags which stops the viewers from displaying them correctly. This tool adds XMP tags corresponding to the specification that notify the viewing widget that:

  • it’s a spherical panoramic image;

  • FOV is 360x180.

So the input image must indeed have 360x180 field of view.

GPano:PoseHeadingDegrees is copied from GPSImgDirection if it’s present.

Inputs:

  • ZIP with photos. Subfolders supported.

Outputs:

  • ZIP with modified photos with added tags. All images are stored in the root of the arhcive.

You can add spherical panoramas to features on a Web Map and display them in NextGIS Web.

Launch the tool: https://toolbox.nextgis.com/t/panotag

Example:

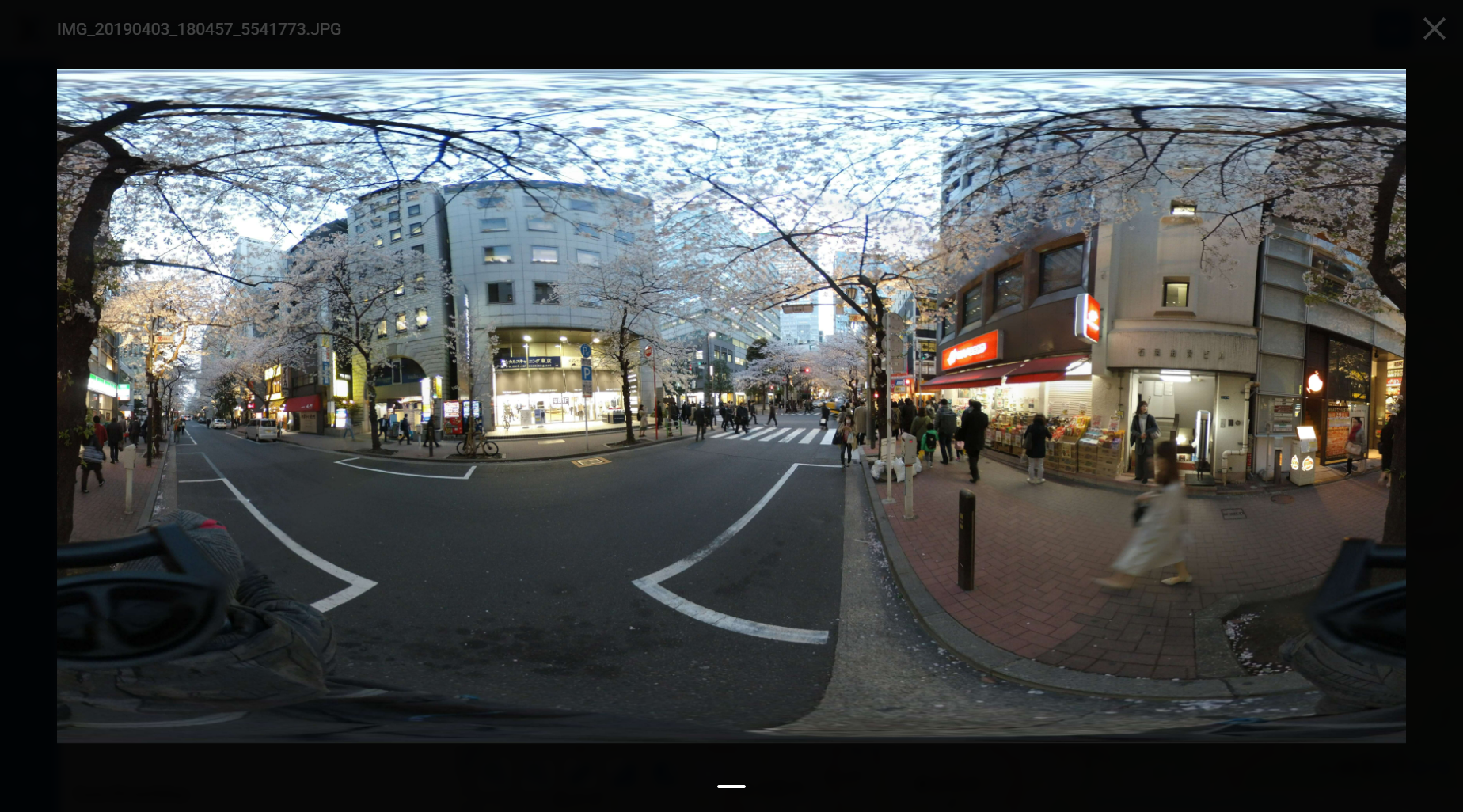

../../_images/panotag_input.png

Pic. 2.35. Untagged image

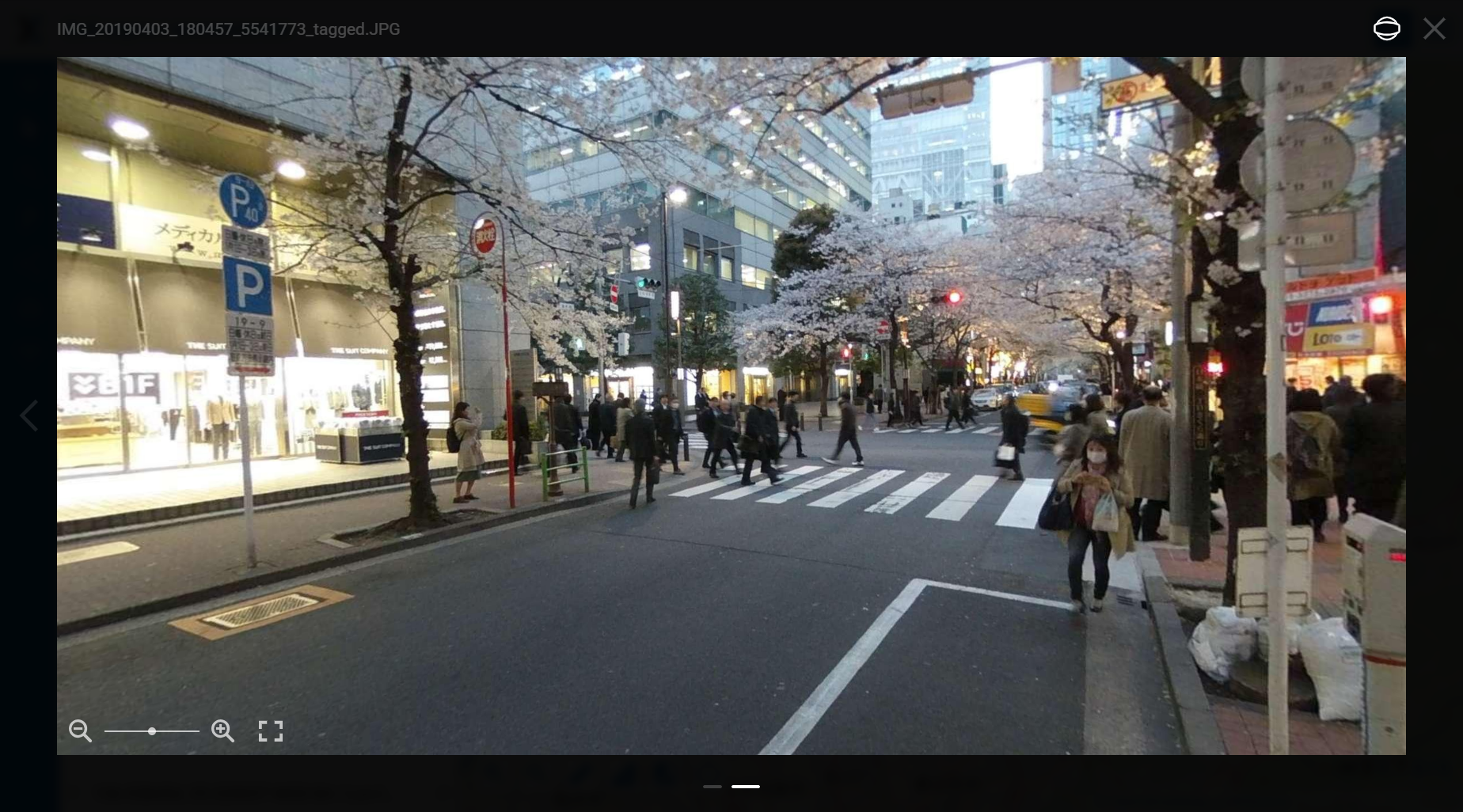

../../_images/panotag_result.png

Pic. 2.36. Tags allow the image to be viewed as a spherical panorama

Try the tool in action by downloading our example:

Input data set to test the tool. The archive contains step-by-step instructions.

Result example of the tool run.
