2.2.28. Merge GPX files

Merge multiple GPS logs in GPX format to one. Most programms open tracks one by one. With this instrument you don’t have to know in advance what day the information for a certain area was collected, all tracks will be viewed at once.

../../_images/gpxmerge_output_en_2.png

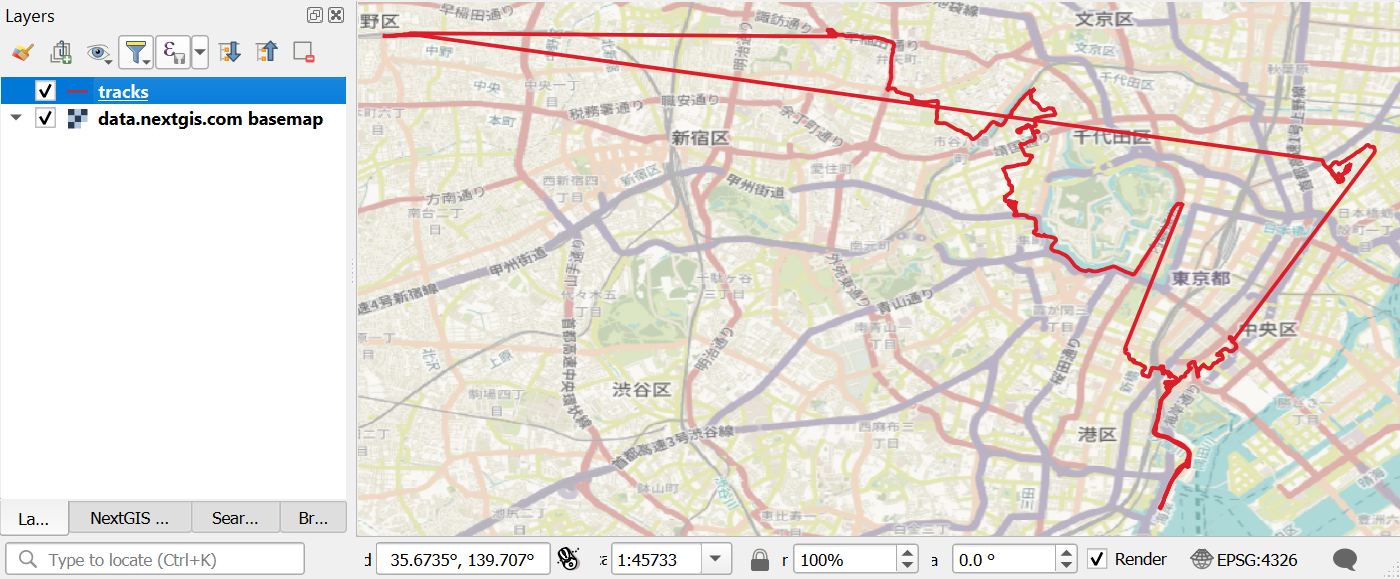

Pic. 2.21. Multiple merged tracks in one layer in QGIS

Additionaly, This instrument fixes GPX files damaged by power down.

Input:

  • ZIP archive with GPX files. Subdirectories of several leverls are allowed. You can have files with the same name in different folders, the tool can process them anyway;

  • Mode - select from the menu. Strict: merge all content of GPX files using gpsbabel, may take long if there are many files. Quick: concat XML code as string, remove GPX extensions, quick, data is simplified.

Important

Archives inside the archive are not supported.

Output:

  • Merged GPX. Resulting GPX file with all tracks merged.

  • Skipped files. List of skipped/invalid files (if any).

Launch instrument: https://toolbox.nextgis.com/t/gpxmerge

Try it out using our sample:

Download input dataset to test the instrument. Step-by-step instructions included.

Get the output to additionally check the results.
